180 Degree Short Radius Elbow Manufacturers in India
Manufactured 180 Degree Short Radius Elbow at our Factory in Mumbai, India
我们是全球制造商，库存师和高质量ANSI B16.9 180°短半径肘，不锈钢180°短半径肘，镍合金200 180°短半径肘，Monel Buttweld 180°短半径肘，304 SS 180 SS 180 SS 180°° Short Radius Elbow, Alloy Steel 180° Short Radius Elbow, Buttweld 180° Short Radius Elbow Fittings, ASME B16.9 180° Short Radius Elbow, Duplex Steel 180° Short Radius Elbow Fittings, ASTM A403 SS 180° Short Radius Elbow, Butt焊缝180°短半径肘在所有维度上都可用。
- ASME B16.9 SR 180 Deg Elbow Specifications
- ASME B16.9 SR 180 Deg Elbow Materials & Grades
- What is a ASME B16.9 SR 180 Deg Elbow?
- ASME B16.9 SR 180 Deg Elbow Price in India
- 为什么选择充足的合金？
- ASME B16.9 SR 180度肘尺寸
- ASME B16.9 SR 180度肘尺寸公差
- ASME B16.9 SR 180度肘部角度公差
- Available Types of ASME B16.9 SR 180 Deg Elbow
- Cities We Export & Supply SR 180 Deg Elbow
- Countries We Export & Supply SR 180 Deg Elbow
- ASME B16.9 SR 180度肘部应用行业
Mumbai, India based Suppliers of Alloy 20 Buttweld 180° Short Radius Elbow, Inconel Buttweld 180° Short Radius Elbow, Copper Nickel 180° Short Radius Elbow, Steel Butt weld 180° Short Radius Elbow, Hastelloy C22 180° Short Radius Elbow, ASME B16.9 Short Radius 180 Deg Elbow, 180 Deg Short Radius Bend, 180 Degree Short Radius Reducing Elbow at most Reasonable Prices in India.
180 Degree Short Radius Elbow Specifications
| Dimensions | ASME / ANSI B16.9, ASME B16.28 MSS-SP-43 |
| 大小 | Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″) |
| Type | 无缝 / ERW /焊接 /制造 |
| Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Form | 180°半径肘, Butt weld 180° Short Radius Elbow. |
180度短半径肘 - 材料和等级www.vwin888
| 不锈钢臀部韦尔德180度短半径肘 | ASTM A403 WP316/316L，ASTM A403 SA/A 774 WP-S，WP-W，WP-W，WP-WX 304/304L，ASTM A182 F316L，304L，DIN 1.4301，DIN1.4306，DIN 1.4401，DIN 1.4404401，DIN 1.44044404404，DIN 1.440444044 |
| Duplex & Super Duplex Steel Buttweld 180 Degree Short Radius Elbow | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 |
| Carbon Steel Buttweld 180 Degree Short Radius Elbow | ASTM A234，ASME SA234 WPB，WPBW，WPHY 42，WPHY 46，WPHY 52，WPH 60，WPHY 65和WPHY 70。 |
| Low Temperature Carbon Steel 180 Degree Short Radius Elbow | ASTM A420 WPL3，A420 WPL6 |
| Alloy Steel Buttweld 180 Degree Short Radius Elbow | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Nickel Alloy Buttweld 180 Degree Short Radius Elbow | ASTM B336，ASME SB336，Nickel 200（UNS No. No.2200），Nickel 201（UNS No. N02201），Monel 400（UNS No. N04400），Monel 500（UNS No. N05500），Inconel 800（UNS No. No.N088800），Inconel 825（UNS No. N08825），Inconel 600（UNS No. N06600），Inconel 625（UNS No. N06625），Inconel 601（UNS No. N06601），Hastelloy C 276（UNS No. N10276），Alloy 20（Alloy 20（Alloy 20）（UNS No. N08020），钛（I级和II级），Cupro-Nickel 70/30，CUNI10FE1MN，CUNI30MN1FE。 |
What is a 180 Degree Short Radius Elbow?
180度短半径肘manufactured using superior grade raw materials. The 180 degree Short radius Elbows are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders
An elbow is a pipe fittings installed between two lengths of pipes or tubings to allow a change of direction, mostly changes done in a 180° or 90° angle, though 45° elbows are also made. The ends may be machined for butt welding (SW) or socketed welding(SW) etc. Most of the elbows are available in short radius(SR) or long radius(LR) variants. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow.
短半径180°肘：Short Radius 180° return bend allows complete reversal of flow.
180 Degree Short Radius Elbow Price List
Below is 180 Degree Short Radius Elbow price in India. This price range also depending on your order, material, dimensions and might be vary without any kind of prior notifications to our customers. For complete detailscontactus now and get Instant Quotation.
| 母亲ials | Price Range | Unit |
|---|---|---|
| Asme b16.9 180°短半径弯头 | $30.00-$80.00 | 美元/件 |
| 焊接肘180度角短半径 | $3.20-$15.50 | 美元/件 |
| 180 degree SR gr2 titanium elbow | $ 3.30- $ 55.00 | 美元/件 |
| mild steel 180° short radius elbow | $ 100.00- $ 800.00 | USD/Ton |
| 180 Degree Short Radius Carbon Steel Elbow | $ 2.10- $ 20.20 | 美元/件 |
| 180°半径肘A234 GR WPB | $ 1.50- $ 99.00 | 美元/件 |
| 8 inch 180 degree SR elbow | $ 10.00- $ 100.00 | 美元/件 |
| ASTM WPB A234 180°短半径肘/弯曲 | $1.50-$99.99 | 美元/件 |
| Sanitary Stainless Steel 180 Degree Butt Weld Elbow | $3.38-$19.98 | 美元/件 |
| 180D短半径肘超级双面钢 | $9.75-$80.00 | 美元/件 |
| 2'SCH40 ASME B16.9 180°短半径肘 | $1.50-$10.50 | 美元/件 |
| 180 degree short radius elbow sch40 | $0.50-$100.00 | 美元/件 |
| 附表40短半径碳钢180度 | $ 5.00- $ 100.00 | 美元/件 |
| SS对接焊接管道180度肘 | $2.50-$99.00 | 美元/件 |
| ASME b16.9 180 degree short radius elbow | $10.00-$300.00 | 美元/件 |
| CS 180 degree short radius sr 1d elbow | $ 10.50- $ 50.00 | 美元/件 |
| Welded ASME B16.9 180° Short Radius Elbows | $ 10.00- $ 95.00 | 美元/件 |
| 1/2inch to 48 inch ansi b16.9 180° Short Radius elbow | $3.35-$250.00 | 美元/件 |
为什么选择充足的合金？
- 充足的合金is anISO 9001:2015/ ISO 14001:2015 / OHSAS 18000:2007 / PED Certified Manufacturers and Stockist of180° Short Radius elbows.
- 我们通过我们的大量产品组合和有意识且活跃的客户友好团队为您提供精美的客户体验。我们的产品可以长期可行且有利。
- We counted as one of the privileged exporter & supplier of an admirable range ofASME B16.9 180 Degree Short Radius Pipe Elbowand return bends. We offer the same in different forms such as Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Super Duplex Steel, Nickel Alloy 200, Monel, Copper Nickel, Hastelloy, Alloy 20 and many more.
- Produce qualitative range of Our offeredStainless Steel 180° Short Radius Elbow正在根据我们的基础设施设施的国际标准质量开发和设计，以达到最高质量规模。
- 我们正在制造Buttweld 180° Short Radius Pipe Elbowsinseamless要么weldedform, it proudly caters the needs of our customers in Oil & Gas, Power Generation, Petrochemical, and Industrial Construction, inclusive of Upstream, Midstream, and Downstream sectors.
- OurANSI B16.9 180°短半径肘are convenient to convey, are easy to handle, reliable, viable and come with a excellent surface finish and made with very high qaulity of row materials. TheseStainless Steel 180 deg Short radius bendavailable in various sizes and shapes as per clients specifications we manufactured it and sell at most affordable prices.
TO GET THE BEST DEAL E-MAIL US ON:info@amplealloys.com

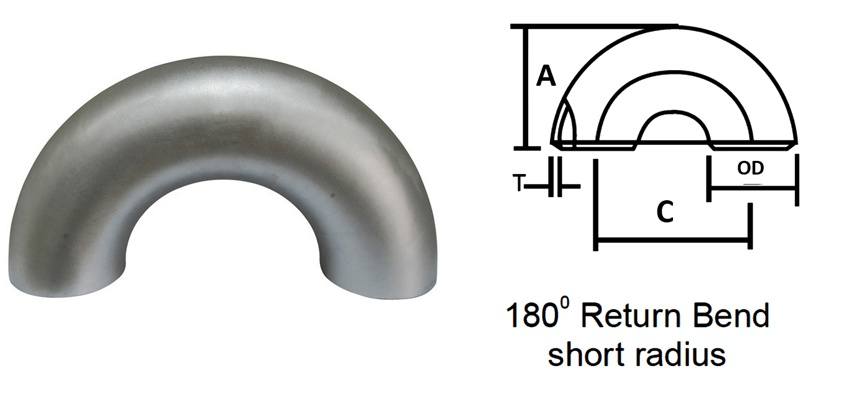

尺寸为180度短半径肘 - ANSI 16.9
| NPS | O.D. D | 180° Short Radius | |
| Center to Center O |
回头 K |
||
| 1/2 | 21.3 | 76 | 48 |
| 3/4 | 26.7 | 76 | 51 |
| 1 | 33.4 | 76 | 56 |
| 1¼ | 42.2 | 95 | 70 |
| 1½ | 48.3 | 114 | 83 |
| 2 | 60.3 | 152 | 106 |
| 2½ | 73 | 190 | 132 |
| 3 | 88.9 | 229 | 159 |
| 3½ | 101.6 | 267 | 184 |
| 4 | 114.3 | 305 | 210 |
| 5 | 141.3 | 381 | 262 |
| 6 | 168.3 | 457 | 313 |
| 8 | 219.1 | 610 | 414 |
| 10 | 273 | 762 | 518 |
| 12 | 323.8 | 914 | 619 |
| 14 | 355.6 | 1067 | 711 |
| 16 | 406.4 | 1219 | 813 |
| 18 | 457 | 1372 | 914 |
| 20 | 508 | 1524 | 1016 |
| 22 | 559 | 1676 | 1118 |
| 24 | 610 | 1829年 | 1219 |
Dimensional Tolerances of 180 Degree Short Radius Elbow – ASME B16.9
| 对于所有配件 | 180° Returns | |||||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel |
Inside Ø at End |
室壁厚度 t / t1 |
Center to Center Dim. O |
回头Dim. K |
Align- ment of Ends U |
| 1/2a 2 1/2 | 1 | 0,8 | 不是 | 7 | 7 | 1 |
| 3 A 3 1/2 | 1 | 1,6 | 较少的 | 7 | 7 | 1 |
| 4 | +2 -1 | 1,6 | than | 7 | 7 | 1 |
| 5 a 6 | +3 -1 | 1,6 | 87,50％ | 7 | 7 | 1 |
| 8 | 2 | 1,6 | 名义 | 7 | 7 | 1 |
| 10 | +4 -3 | 3,2 | thickness | 7 | 7 | 2 |
| 12a 18 | +4 -3 | 3,2 | 10 | 7 | 2 | |
| 20a 24 | +6 -5 | 4,8 | 10 | 7 | 2 | |
| 26 A 30 | +7 -5 | 4,8 | ….. | ….. | ….. | |
| 32 a 48 | +7 -5 | 4,8 | ….. | ….. | ….. | |
Angularity Tolerances of 180 Degree Short Radius Elbow
| nd | 最大角度 | 最大飞机 |
| Q | P | |
| 1/2a 4 | 1 | 2 |
| 5 a 8 | 2 | 4 |
| 10a 12 | 3 | 5 |
| 14a 16 | 3 | 7 |
| 18a 24 | 4 | 10 |
| 26 A 30 | 5 | 10 |
| 32 A 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
Available types of 180 Degree Short Radius Elbow
| 高质量180°短半径肘 | Stainless Steel 180° Short Radius Elbow |
| 焊接对接焊缝180°短半径肘 | Carbon Steel 180° Short Radius Elbow |
| ASME B16.28 Buttweld 180° Short Radius Elbow | ANSI B16.9 Buttweld 180° Short Radius Elbow |
| Buttweld 180°短半径肘 | High Nickel Alloy 180° Short Radius Elbow |
| ASME B16.9 Butt weld 180° Short Radius Elbow | 双链钢臀部韦尔德180°短半径肘 |
| Seamless Butt weld 180° Short Radius Elbow | SS 180° Short Radius Elbow |
| 钛臀部韦尔德180°短半径肘 | Inconel Butt weld 180° Short Radius Elbow |
| 超级双工钢臀部韦尔德180°短半径肘 | 铜镍180°短半径肘 |
| Steel 180° Short Radius Elbow | Hastelloy 180° Short Radius Elbow |
| ASTM A403不锈钢180°短半径肘 | 对接焊缝B16.9 180°短半径肘 |
180 Degree Short Radius Elbow Export & Supply City List
|
|
|
|
180 Degree Short Radius Elbow Export & Supply Country List
|
|
|
|
180 Degree Short Radius Elbow Application Industries
已知ASME/ANSI B16.9 180°短半径肘可提供出色的性能，并且通常用于满足需求。我们通过全球储备分支网络提供了各种各样的Buttweld 180°SR肘。这些对接焊缝180°短半径肘可根据需要在各个行业中使用。印度最常见的是：
- Stainless Steel 180° Short Radius Elbow uses in Oil and Gas Pipeline
- 180°Buttweld SR肘用于化学工业
- Alloy Steel 180° Short Radius Elbow uses in Plumbing
- 180°半径肘Pipe Fittings uses in Food Processing Industry
- Buttweld 180° SR Elbow uses in Structural Pipe
- ANSI B16.9 Buttweld 180° Short Radius Elbow uses in Power Plant
- 180° Short Radius Pipe Elbow uses in Paper & Pulp Industry
- 180 Deg Short Radius Bend uses in Heating
- 180度短半径减少肘部用途
- ASME B16.9 Short Radius 180 Deg Elbow uses in General Purpose Applications
- 180° SR Elbow uses in Fabrication Industry
