印度180度半径肘部制造商
在我们位于印度孟买的工厂制造的180度长半径肘
我们是全球制造商，库存商和出口商高质量不锈钢180°长半径肘，ASTM A403 SS 180°长半径肘，镍合金200 180°长半径肘，ANSI B16.9 180°长半径肘，304 SS，304 SS180°长的半径肘，合金钢180°长半径肘，臀部180°长半径肘部肘部配件，Monel Buttweld 180°长半径肘，ASME B16.9 180°长半径肘，Duplex Steel 180°长的长度半径肘部，臀部肘部，屁股，臀部，靠背，靠背，靠背，靠背，靠背，靠背，焊缝180°长半径肘在所有维度上都可用。
- ASME B16.9 LR 180 Deg Elbow Specifications
- ASME B16.9 LR 180 Deg Elbow Materials & Grades
- What is a ASME B16.9 LR 180 Deg Elbow?
- ASME B16.9 LR 180 Deg Elbow Price in India
- Why Choose Ample Alloys?
- ASME B16.9 LR 180 Deg Elbow Dimensions
- ASME B16.9 LR 180 Deg Elbow Dimensional Tolerance
- ASME B16.9 LR 180度肘部角度公差
- ASME B16.9 LR 180 Deg Elbow Weight Chart
- Available Types of ASME B16.9 LR 180 Deg Elbow
- 城市我们出口和供应LR 180度肘
- 国家我们出口和供应LR 180度肘
- ASME B16.9 LR 180 Deg Elbow Application Industries
Mumbai, India based Suppliers of Hastelloy C22 180° Long Radius Elbow, Alloy 20 Buttweld 180° Long Radius Elbow, Inconel Buttweld 180° Long Radius Elbow, Copper Nickel 180° Long Radius Elbow, Steel Butt weld 180° Long Radius Elbow, ASME B16.9 Long Radius 180 Deg Elbow, 180 Deg Long Radius Bend, 180 Degree Long Radius Reducing Elbow at most Reasonable Prices in India.
180 Degree Long Radius Elbow Specifications
| Dimensions | ASME / ANSI B16.9, ASME B16.28 MSS-SP-43 |
| 大小 | 无缝肘（1/2英寸24英寸），ERW /焊接 /制造肘（1/2“ 48”） |
| 类型 | Seamless / ERW / Welded / Fabricated |
| Thickness | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Form | 180°长半径Elbow, Butt weld 180° Long Radius Elbow. |
180 Degree Long Radius Elbow – Materials & Grades
| 不锈钢臀部180度长半径肘 | ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Duplex & Super Duplex Steel Buttweld 180 Degree Long Radius Elbow | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 |
| 碳钢臀部韦尔德180度长半径肘 | ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel 180 Degree Long Radius Elbow | ASTM A420 WPL3, A420 WPL6 |
| 合金钢臀部180度长半径肘 | ASTM / ASME A / SA 234 GR。WP 1，WP 5，WP 9，WP 11，WP 12，WP 22，WP 91 |
| 镍合金Buttweld 180度长半径肘 | ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. |

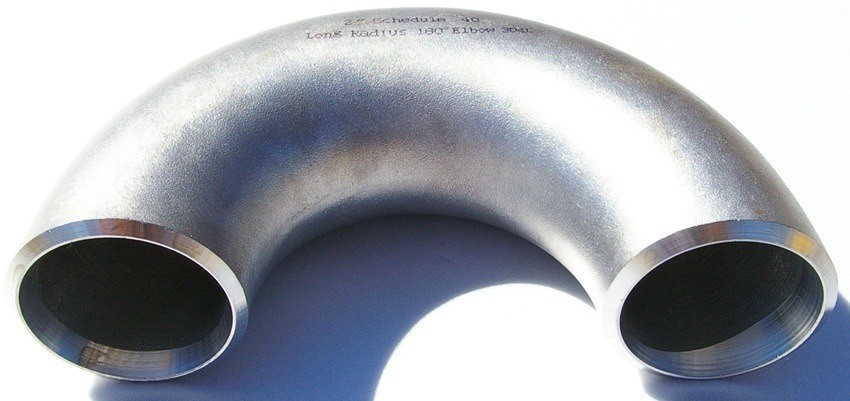

What is a 180 Degree Long Radius Elbow?
An elbow is a pipe fittings which is widly used as a connection point between two lengths of pipes to produce a change in the direction of flow in the pipe, usually at an angle of 90° (90 deg), 45°(45 deg) or 180° (180 deg). Elbow pipe fitting are also commonly referred as弯曲, and are available in a range of materials such as nickel alloys, stainless steel, alloy steel, carbon steel, duplex, supper duplex and cupro nickel etc.180 degree long radius elbowor also called asreturn bend允许完全逆转流动。肘部和中心线末端之间的距离为3 x NP。
180 Degree Long Radius Elbow Price List
Below is 180 Degree Long Radius Elbow price in India. This price range also depending on your order, material, dimensions and might be vary without any kind of prior notifications to our customers. For complete detailscontact现在我们并立即报价。
| 母亲ials | Price Range | Unit |
|---|---|---|
| 180 Degree Elbow LR Elbow 1.5D | $1.50-$15.15 | USD/Piece |
| Butt-welding Pipe Fittings 180D Long Radius Elbow | $9.55-$35.00 | USD/Piece |
| ASME B16.9长半径180度肘 | $440.00-$880.00 | USD/Piece |
| 180 degree Long Radius(LR r=1.5d) Elbow | $4.40-$99.90 | USD/Piece |
| 180度LR肘Sch40 | $ 09.50- $ 99.99 | USD/Piece |
| 180° high pressure long radius elbow | $ 50.00- $ 100.00 | USD/Piece |
| 长半径不锈钢180°肘 | $10.00-$99.00 | USD/Piece |
| 180度肘/弯管 | $650.00-$850.00 | USD/Ton |
| 180 degree LR steel return bend/elbow | $5.00-$10.00 | 美元/千克 |
| 180°碳焊接长半径肘 | $9.10-$999.00 | USD/Piece |
| long radius copper fittings 180° elbow | $1.00-$99.00 | USD/Piece |
| SCH160 Long Radius 180 deg Elbow | $1110.00-$1700.00 | USD/Ton |
| Carbon Steel Long Radius 180° Elbow | $3.00-$16.66 | USD/Piece |
| titanium long radius 180° pipe elbow 1.5d | $4.80-$30.00 | USD/Piece |
| 180 degree Elbow | $ 1.00- $ 999.00 | USD/Piece |
| dn80 3″ sch80 180° long radius Seamless elbow | $0.50-$1.00 | USD/Piece |
| Butt weld pipe fitting Long Radius Elbow 180°e | $1.00-$38.00 | USD/Piece |
| copper pipe fitting 180° long radius elbow | $5.50-$30.00 | USD/Piece |
Why Choose Ample Alloys?
- Ample Alloys是一个ISO 9001:2015/ ISO 14001：2015 / OHSAS 18000：2007 / PED认证的制造商和库存师180°长半径elbows.
- We offers you an exquisite customer experience through our considerable product portfolio and a conscious and active customer-friendly team. We engineer products that are feasible and advantageous in a long run.
- 我们算作是特权的出口商和令人钦佩范围的供应商之一ASME B16.9 180度长半径管肘and return bends. We offer the same in different forms such as Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Super Duplex Steel, Nickel Alloy 200, Monel, Copper Nickel, Hastelloy, Alloy 20 and many more.
- Produce qualitative range of Our offered不锈钢180°长半径肘is being developed and designed in accordance by means of the international quality of standards at our infrastructure facility for to attain the highest scales of quality.
- We are manufacturingButtweld 180° Long Radius Pipe Elbowsinseamlessor焊接form, it proudly caters the needs of our customers in Oil & Gas, Power Generation, Petrochemical, and Industrial Construction, inclusive of Upstream, Midstream, and Downstream sectors.
- 我们的ANSI B16.9 180° Long Radius Elbows方便地传达，易于处理，可靠，可行，并具有出色的表面饰面，并具有很高的行材料。www.vwin888这些Stainless Steel 180 deg long radius bend根据客户规格，我们以各种尺寸和形状提供，我们以最高价格的价格制造并出售。
为了获得最好的交易电子邮件：info@amplealloys.com
180度长半径肘的尺寸 - ANSI 16.9
| NPS | O.D. D | 180°长半径 | |
| 中心到中心 O |
Back to Face K |
||
| 1/2 | 21.3 | 76 | 48 |
| 3/4 | 26.7 | 76 | 51 |
| 1 | 33.4 | 76 | 56 |
| 1¼ | 42.2 | 95 | 70 |
| 1½ | 48.3 | 114 | 83 |
| 2 | 60.3 | 152 | 106 |
| 2½ | 73 | 190 | 132 |
| 3 | 88.9 | 229 | 159 |
| 3½ | 101.6 | 267 | 184 |
| 4 | 114.3 | 305 | 210 |
| 5 | 141.3 | 381 | 262 |
| 6 | 168.3 | 457 | 313 |
| 8 | 219.1 | 610 | 414 |
| 10 | 273 | 762 | 518 |
| 12 | 323.8 | 914 | 619 |
| 14 | 355.6 | 1067 | 711 |
| 16 | 406.4 | 1219 | 813 |
| 18 | 457 | 1372 | 914 |
| 20 | 508 | 1524年 | 1016 |
| 22 | 559 | 1676年 | 1118 |
| 24 | 610 | 1829 | 1219 |
Dimensional Tolerances of 180 Degree Long Radius Elbow – ASME B16.9
| For all fittings | 180° Returns | |||||
| 名义管尺寸（NP） | Outside Ø at Bevel |
Inside Ø at End |
Wall Thickness t / t1 |
中心到中心Dim. O |
Back to Face Dim. K |
终点的一致 U |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 7 | 7 | 1 |
| 3 a 3 1/2 | 1 | 1,6 | less | 7 | 7 | 1 |
| 4 | +2 -1 | 1,6 | than | 7 | 7 | 1 |
| 5 A 6 | +3 -1 | 1,6 | 87,50% | 7 | 7 | 1 |
| 8 | 2 | 1,6 | of nominal | 7 | 7 | 1 |
| 10 | +4 -3 | 3,2 | thickness | 7 | 7 | 2 |
| 12 A 18 | +4 -3 | 3,2 | 10 | 7 | 2 | |
| 20 A 24 | +6 -5 | 4,8 | 10 | 7 | 2 | |
| 26 a 30 | +7 -5 | 4,8 | ….. | ….. | ….. | |
| 32 a 48 | +7 -5 | 4,8 | ….. | ….. | ….. | |
Angularity Tolerances of 180 Degree Long Radius Elbow
| Angularity Tolerances | ||
| ND | Max off angle | Max off plane |
| Q | P | |
| 1/2 a 4 | 1 | 2 |
| 5 A 8 | 2 | 4 |
| 10 a 12 | 3 | 5 |
| 14 a 16 | 3 | 7 |
| 18 a 24 | 4 | 10 |
| 26 a 30 | 5 | 10 |
| 32 a 42 | 5 | 13 |
| 44 a 48 | 5 | 20 |
Available types of 180 Degree Long Radius Elbow
| Buttweld 180° Long Radius Elbow | Duplex Steel Buttweld 180° Long Radius Elbow |
| ASME B16.9 Butt weld 180° Long Radius Elbow | High Nickel Alloy 180° Long Radius Elbow |
| 不锈钢180°长半径肘 | SS 180° Long Radius Elbow |
| 高质量180°长半径肘 | 无缝臀部焊缝180°长半径肘 |
| Welded Butt weld 180° Long Radius Elbowr | ASME B16.28 BUTTWELD 180°长半径肘 |
| Carbon Steel 180° Long Radius Elbow | ANSI B16.9 Buttweld 180° Long Radius Elbow |
| Titanium Buttweld 180° Long Radius Elbow | Inconel Butt weld 180° Long Radius Elbow |
| ASTM A403 Stainless Steel 180° Long Radius Elbow | Butt Weld B16.9 180° Long Radius Elbow |
| Super Duplex Steel Buttweld 180° Long Radius Elbow | Copper Nickel 180° Long Radius Elbow |
| Steel 180° Long Radius Elbow | Hastelloy 180° Long Radius Elbow |
180 Degree Long Radius Elbow Export & Supply City List
|
|
|
|
180 Degree Long Radius Elbow Export & Supply Country List
|
|
|
|
180 Degree Long Radius Elbow Application Industries
ASME / ANSI B16.9 180°长半径弯头to deliver exceptional performance and are generally developed for meeting the demands. We supply a wide range of Buttweld 180° LR Elbow through a worldwide network of stock-keeping branches. These Butt weld 180° Long Radius Elbow is uses in various industries According to needs. Most Common Indusctris are:
- 不锈钢180°长半径肘uses in Oil and Gas Pipeline
- 180° Buttweld LR Elbow uses in Chemical Industry
- 合金钢180°长半径肘用于管道
- 180°长半径肘管配件在食品加工行业中使用
- Buttweld 180° LR Elbow uses in Structural Pipe
- ANSI B16.9 Buttweld 180° Long Radius Elbow uses in Power Plant
- 180°长半径管肘用于纸张和纸浆行业
- 180 Deg Long Radius Bend uses in Heating
- 180度长半径减少肘部用途
- ASME B16.9 Long Radius 180 Deg Elbow uses in General Purpose Applications
- 180° LR Elbow uses in Fabrication Industry
